What our water heater replacement service includes
When your water heater reaches the end of its service life or suffers an internal tank rupture, our licensed C-36 technicians provide complete replacement, code upgrades, and professional commissioning. Every installation dispatched from our Grand Boulevard shop includes: (1) Controlled draining, mechanical disconnection, and eco-friendly haul-away of your old water heater; (2) Peak-hour demand sizing calculation to ensure adequate hot water for all household bathrooms; (3) Heavy-gauge galvanized seismic earthquake strapping anchored into wall studs per California Plumbing Code Section 507.2; (4) Pre-pressurized thermal expansion tank installation to protect residential pipes on closed municipal water systems; (5) New lead-free full-port quarter-turn brass shutoff valves and dielectric unions; (6) Gas sediment trap (dirt leg) assembly and flexible stainless steel gas connector; (7) Temperature and pressure (T&P) relief valve with full-size copper discharge line routed to the exterior; (8) Complete City of Corona Building Division eTRAKiT permit management and inspection coordination.
When replacement is more cost-effective than water heater repair
In Corona and the greater Inland Empire, residential water heaters endure harsh operating conditions due to elevated mineral concentrations in municipal tap water. Most standard tank units provide a functional lifespan of 8 to 12 years. If your water heater is over a decade old, investing in costly replacement parts—such as a new electronic gas control valve or burner assembly—rarely delivers long-term value. Once mineral sediment accumulates into a four-to-six-inch solid rock mass over the burner, thermal transfer degrades, leading to chronic overheating of the steel tank bottom. Furthermore, if you observe rust-colored hot water, dampness weeping from bottom jacket seams, or pooling water beneath the combustion chamber, the internal porcelain enamel glass lining has cracked and the steel tank vessel has rusted through. A leaking tank cannot be patched or welded; immediate replacement is mandatory to prevent room flooding.
Sizing the right water heater for your Corona home
Selecting the right water heater requires evaluating peak-hour hot water demand rather than simply matching your existing tank size: (1) 40-Gallon Gas Water Heaters: Well suited for smaller one-to-two bathroom residences or townhomes with one to three occupants, delivering an approximate first-hour rating (FHR) of 65 to 70 gallons. (2) 50-Gallon Gas Water Heaters: The standard capacity for typical three-to-four bedroom single-family homes across North Corona, Corona Hills, and Central Corona, comfortably supplying two to three simultaneous showers with an FHR of 80 to 90 gallons. (3) 75-Gallon High-Recovery Units: Recommended for expansive multi-story properties throughout South Corona, Eagle Glen, and Sierra del Oro that feature oversized Roman soaking tubs, dual master shower heads, and multiple laundry cycles. We calculate your home's total fixture units to select a model that delivers continuous hot water without recovery delays.
California Plumbing Code seismic strapping and safety standards

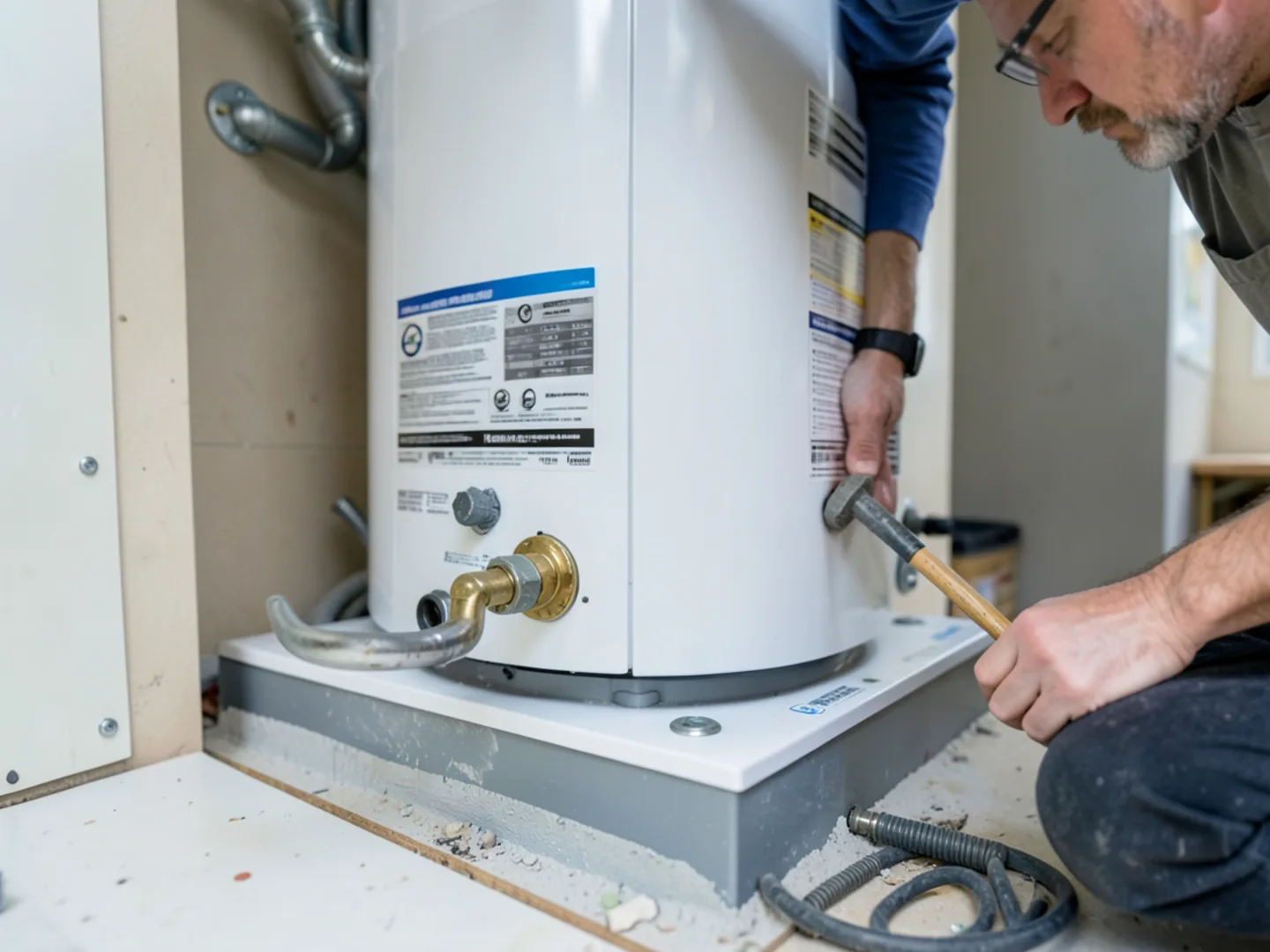

Due to regional earthquake faults traversing Southern California, state law mandates stringent installation protocols to prevent gas leaks and fires during ground shaking. Under California Plumbing Code (CPC Section 507.2) and California Health and Safety Code Section 19211, all water heaters must be secured with approved heavy-gauge seismic straps placed in two specific locations: the upper third and lower third of the tank body. These steel bands must be lag-bolted directly into 2x4 wall studs using 1/4-inch by 3-inch fasteners with heavy washers. In residential garage installations, water heaters with open flame burners must also be mounted on an elevated platform 18 inches above the garage floor to keep ignition sources away from heavy flammable gasoline vapors, unless the unit is certified as Flammable Vapor Ignition Resistant (FVIR).

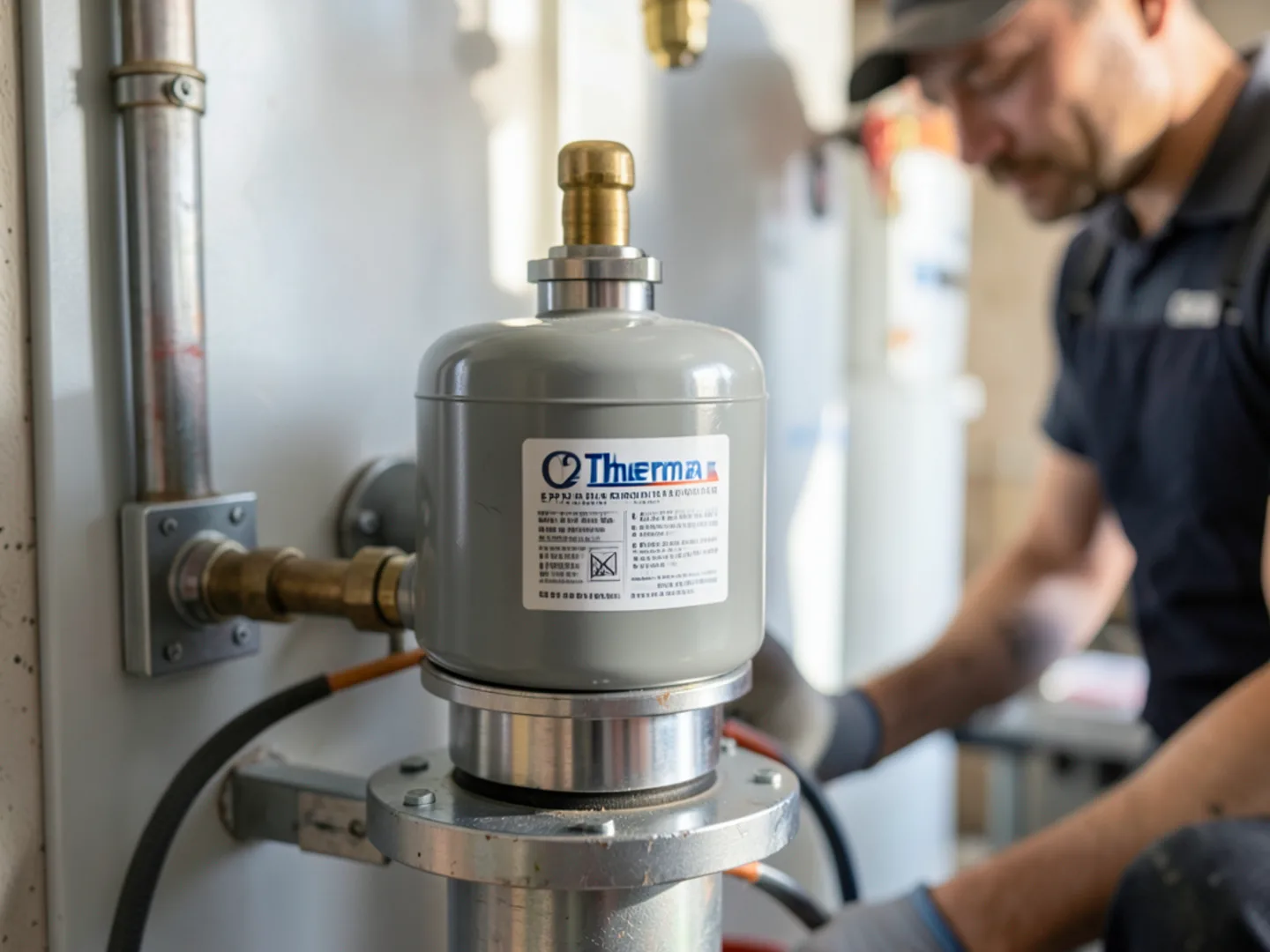

Closed water systems and thermal expansion tank calibration
Because the City of Corona Department of Water and Power (DWP) utilizes backflow prevention check valves and municipal pressure reducing valves, residential plumbing systems operate as closed hydraulic loops. When cold water inside your newly installed 50-gallon tank is heated from 55 degrees to 125 degrees Fahrenheit, thermal expansion increases the water volume by approximately 2% to 3%. In a closed system, this expanded volume has nowhere to escape, driving internal static pressure above 120 to 150 PSI. These extreme pressure surges stress appliance valves, washing machine hoses, and copper pipe fittings. To resolve this, our technicians install an ASME-rated thermal expansion tank on the cold water supply line. We test house static water pressure with a precision gauge and inflate the internal butyl rubber diaphragm to match your home's incoming pressure, absorbing thermal expansion safely.
Venting configurations and gas sediment trap requirements
Proper venting and fuel delivery are critical components of a safe atmospheric gas water heater installation. We inspect existing Type B double-wall metal chimney vents to verify continuous upward pitch (minimum 1/4-inch rise per horizontal foot) and complete clearance from combustible attic framing, ensuring combustion gases exhaust outdoors without back-drafting dangerous carbon monoxide into living quarters. On the fuel supply side, California Plumbing Code Section 1211.7 requires a dedicated sediment trap (dirt pocket) constructed using a black iron tee fitting with a capped four-inch nipple extending downward directly upstream of the gas control valve. This fitting forces gas flow to change direction, capturing pipe scale, condensation, and thread shavings before they can contaminate delicate electronic gas valves.
City of Corona building permits and eTRAKiT inspection procedures
Every residential water heater replacement in Corona requires a municipal building permit issued through the City of Corona Building Division. Navigating this process ensures that your installation meets current Title 24 California energy standards, local building codes, and insurance requirements. Our licensed contractors manage the entire administrative procedure through the Corona eTRAKiT online portal. Once the mechanical installation is complete, we schedule the municipal inspection, providing the city inspector with complete access to verify seismic strapping anchor points, thermal expansion tank pressure, exterior T&P copper drain routing, combustion air venting, and gas sediment traps for formal permit signoff.
Diagnostic equipment and professional installation tooling
Replacing heavy commercial and residential water heaters cleanly requires specialized equipment. Dispatched from 685 E Grand Blvd, our service vehicles carry commercial electric submersible evacuation pumps that drain sediment-laden 50-gallon tanks in under ten minutes. We deploy heavy-duty motorized stair-climbing hand trucks to transport new tanks into basements and garage platforms without scuffing walls. To guarantee leak-free water connections, our technicians utilize Milwaukee M12 Force Logic press tools with Viega ProPress lead-free brass fittings, completing connections without open soldering flames. For fuel gas lines, we test working manifold pressure with digital manometers and verify all threaded connections using non-corrosive gas leak detection bubble solutions.
Need plumbing service in Corona or surrounding communities?
Our central dispatch is stationed on East Grand Boulevard. Whether you are dealing with an urgent leak in South Corona, need sewer diagnostics in Norco, or require water heater replacement in Eastvale, our licensed technicians arrive prepared with complete equipment rigs. Read more about our overall plumber in Corona CA services, or contact our shop at (207) 419-2600.
